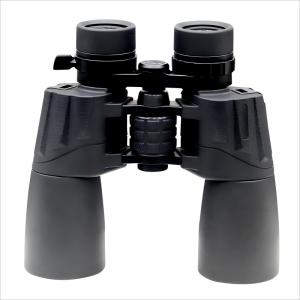

Features:
1.Variable Zoom Magnification (10-30x)
Adjustable magnification for versatile viewing, from wide-field observation to high-detail close-ups.
2.50mm Large-Caliber Objective Lens
Enhanced light-gathering capability for bright, clear images even in low-light conditions.
3.Spherical Lens Design
Minimizes distortion and provides sharp, high-contrast visuals across the entire field of view.
4.Fully Multi-Coated Optics
Anti-reflective coatings maximize light transmission (90%+) for vibrant, true-to-life colors.
|
Details |
|
|
Product model |
Jimu 10-30x50 |
|
Magnification |
10x~30x |
|
Lens material |
Aluminum alloy |
|
Rubber material |
Rubber (NBR+PVC) |
|
Objective lens diameter |
50mm |
|
Eyepiece diameter |
20mm |
|
Exit pupil diameter |
5.2mm~ 1.67mm |
|
Exit pupil distance |
22mm ~16.5mm |
|
Field of view (at 1000M) |
3.5°~1.4° |
|
Adjustable interpupillary range |
58~73mm |
|
Focusing method |
Mid-range |
|
Focusing lens |
Eyepiece |
|
Focusing prism system |
Paul prism |
|
Objective lens composition |
2 pieces in 1 set |
|
Lens type |
Spherical Lens (spherical) |
|
Optical material |
Optical glass (All optical glass) |
|
Coating |
Eyepiece, objective lens broadband green film |
|
Tripod |
Supported (optional, universal camera tripod interface) |
